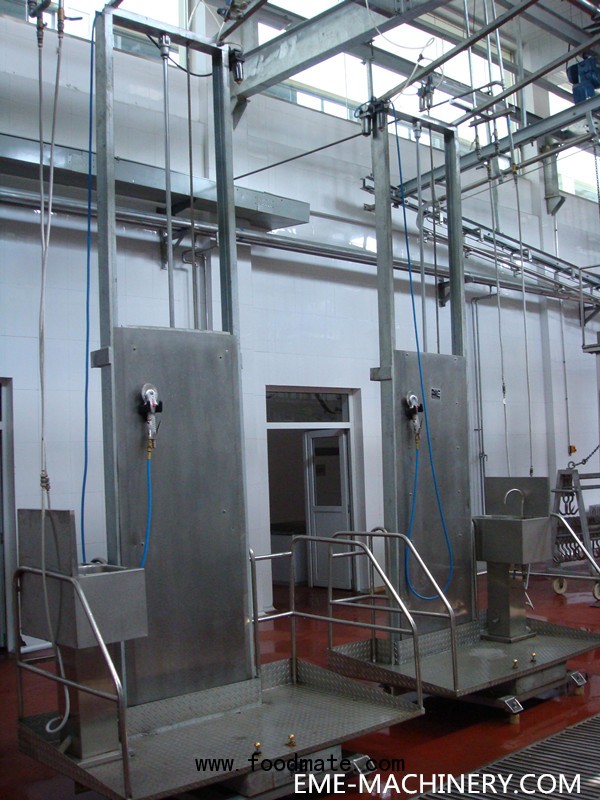

Cattle Abattoir (slaughter) Dual-Pillar Pneumatic Elevator

Which used to support workers convenient to cattle brisket pre-skinning、cattle carcass splitting cutting, the detail data as following:

1)-Air compressor capacity: 6Mpa-10Mpa

2)-Elevating height: 1600mm

3)-Elevating speed: adjustment

4)-Rated pressure: 0.8Mpa. Working Pressure: 0.6Mpa

5)-Air consume (Up and down): 13L/Time

6)-Elevating ability: 250Kg

7)-Board size: 19001000mm

8)-Out size: 11009003800mm

9)-Material:
Hot galvanized steel or Stainless steel main support pillar

Aluminum checkered plate support sheet
