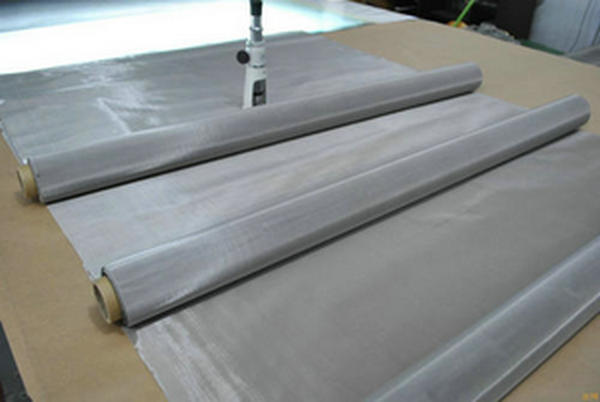

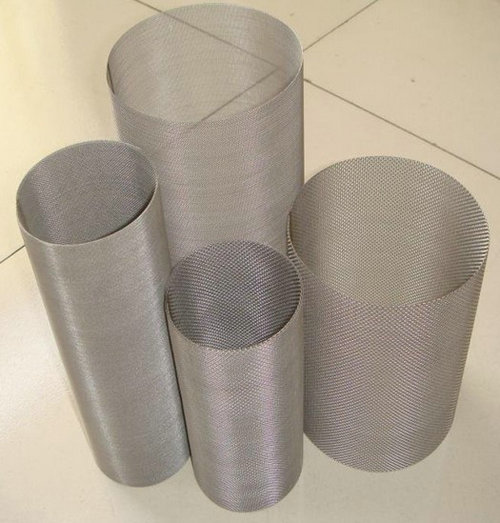

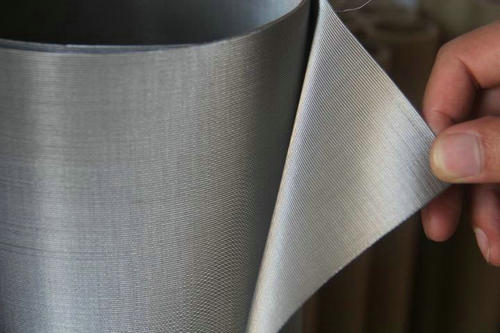

Weave style: plain – dutch weave & twilled weave.
Property: with anti-acid,anti-alkali,anti-high temperature,wear-resistant properties.
Property: with anti-acid,anti-alkali,anti-high temperature,wear-resistant properties.
Material: SS 201,202,304,304L, 316,316L, 321, 430, etc.
Application: petroleum, chemical, automotive, new energy, food, pharmaceutical and other industries.
Application: petroleum, chemical, automotive, new energy, food, pharmaceutical and other industries.
Detail Specification:
|
Specification of Stainless Steel Wire Mesh(Plain Dutch Weave)
|
||
|
Mesh per Inch (Warp x Weft)
|
Wire Diameter (Warp x Weft)
|
|
|
12mesh X 64mesh
|
0.58mm X 0.40mm
|
|
|
14mesh X 88mesh
|
0.50mm X 0.33mm
|
|
|
24mesh X 110mesh
|
0.355mm X 0.25mm
|
|
|
30mesh X 150mesh
|
0.23mm X 0.18mm
|
|
|
40mesh X 200mesh
|
0.18mm X 0.14mm
|
|
|
50mesh X 250mesh
|
0.14mm X 0.11mm
|
|
|
60mesh X 300mesh
|
0.14mm X 0.09mm
|
|
|
70mesh X 400mesh
|
0.12mm X 0.08mm
|
|
|
Specification of Stainless Steel Wire Mesh(twill Dutch Weave)
|
||
|
Mesh per Inch (Warp x Weft)
|
Wire Diameter (Warp x Weft)
|
|
|
24mesh X 220mesh
|
0.30mm X 0.25mm
|
|
|
20mesh X 250mesh
|
0.30mm X 0.20mm
|
|
|
50mesh X 500mesh
|
0.14mm X 0.11mm
|
|
|
80mesh X 700mesh
|
0.10mm X 0.08mm
|
|
|
165mesh X 800mesh
|
0.071mm X 0.045mm
|
|
|
200mesh X 600mesh
|
0.071mm X 0.050mm
|
|
|
200mesh X 1400mesh
|
0.071mm X 0.04mm
|
|
|
165mesh X 1400mesh
|
0.071mm X 0.04mm
|
|
|
325mesh X 2300mesh
|
0.035mm X 0.025mm
|
|
|
400mesh X 2800mesh
|
0.030mm X 0.02mm
|
|
