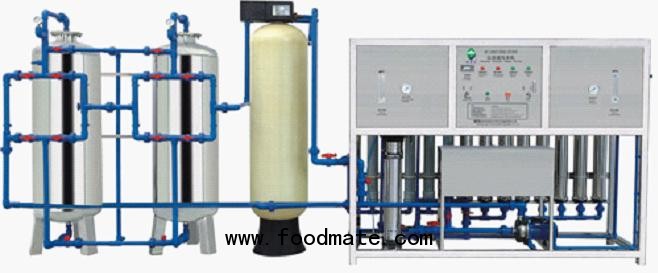

As shown on the attached filtration spectrum, our water treatment machine is composed of the following in basic for covering all the
filtration part according to the spectrum with different filter parts.
1. Silica sand filter
2. Active carbon filte
3. Water softer
4. PP sediment micron filter
5. Reverse Osmosis membrane filteration
The first 4 parts we call it pre-treatment, and the pre-treatment part will be designed compatiable with the RO part according to specific water condition from the buyer, the following devices can be an optional choices to be added into the pre-treatment part for optional choice for customized water treatment purpose:
1. Resin water softener with automatic backwash control
2. Pulsafeeder brand PAC chemical dosing machine for anti-scalant chemical dosing, for Chloride removal, for PH ratio adjustment
3. PLC control system
Our water treatment system has single pass type and two grade type with "HYDRANAUTICS" brand RO membrane in basic, "FILMTEC" desalination RO membrane for optional choice according to customer's water condition, pure water output capacity we have machines ranging from 300L/H to 20,000L/H in basic, larger system will be upon customer request.
Technical scope
Operating temperature Electrical equipments Input water quality
Product quality
15-40 C 25C can make the membrane on it's best situation, if the users' temp lower than 15C must
add heating system
standard 380V 60HZ other customer design for choose, but the cost for the electrical change need be confirmed and pay by buyer
City tap water, Well water, River water etc. It's better that buyer send the local water quality report to seller, we will give suggestion for choising the machine or auxiliary machines
TDS<10us/cm Accord with national bottled water standard GB17323-1998(china), the final quality need confirming with the user's input water quality.
Technical parameter
|
Singel grade machine 2T/H |
|||||
|
Name |
Meterial |
Made by |
Model |
Qty |
Remarks |
|
Quartz sand filter |
Stainless steel 304 |
Angel |
Ф500×1200×δ2.0 |
|
Quartz sand: 800kg |
|
Active carbon filter |
Stainless steel 304 |
Angel |
Ф500×1200×δ2.0 |
1 |
Active carbon: 300kg |
|
Water softer RS-3 |
FRP |
Angel |
Ф400×1650×δ1.0 |
1 |
Flow :8T |
|
PP precise filter |
Stainless steel 304 |
Angel |
Ф330×500×δ1.5 |
1 |
5u x 1000mm filter |
|
RO membrane |
TFC |
HYDRANAUTICS |
ESPA-4040 |
8 |
pressure 0.8-1mpa |
|
RO membrane housing |
Stainless steel 304 |
Angel |
4080 |
5 |
|
|
RO pressure pump |
Stainless steel 304 |
Nanfang pump co. China |
CDL4-220 |
1 |
4-6T/H |
|
Flow meter |
|
Suzhou China |
5T |
2 |
|
|
Solenoid Valve |
|
Shanghai China |
DF25 |
1 |
|
|
Main machine chassis |
Stainless steel 304 |
Angel |
3T type |
1 |
|
|
Ozone system |
|
BNP |
10g |
1 |
|
|
Storage tank |
Stainless steel 304 |
Angel |
2T: Ф1650 x 2340 |
1 |
|
|
Electronic component, pipe connection, pressure gauge etc; 2 set of start-up system, spare parts for 3 years operation manual(English), packing box |
|||||
Note:
1. All the valves, flange, elbow, water related parts are made by Stainless Steel 304
2. The pump we have Denmark Grundfos for customer choice, the customer also can make designation of pump brand
3. For the RO membrane we have U.S. Filmtec membrane for choose, the customer also can make designation of pump brand
4. All the change of configure the seller will confirm the price with buyer
