This system adopts the most advanced Reverse Osmosis pure water filter technic. Its water production conductance rate generally less than 5us/cm, which precede the national standard GB17323-
1998.The water made by this system is asepsis, non-granule and pure.
The RO membranes of this system adopt ESPA-4040 of American HYDRANAUTICS Its desalting rate can highly reach 98% and callback rate can be reach 50-75%, which are its special technical manner. Many pure water manufacturers had proved this whole set system that the remove rate of germina in water, poisonous heavy metal, radionuclide, organic micro pollution can highly reach 99.99%, 95%,
99% and 95%. After removing the poisonous and harmful substance in water basically, many toxicological index, such as organics, benzene, tetrachloride, pesticide, hydroxybenzene and plumbum, hydrargyrum, chrome, cadmium, uranium etc.

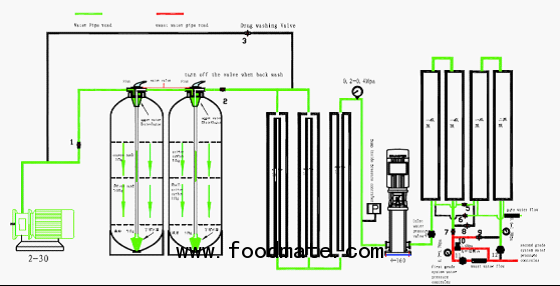

As shown on the attached filtration spectrum, our water treatment machine is composed of the following in basic for covering all the
filtration part according to the spectrum with different filter parts.
1. Silica sand filter
2. Active carbon filte
3. Water softer
4. PP sediment micron filter
5. Reverse Osmosis membrane filteration
The first 4 parts we call it pre-treatment, and the pre-treatment part will be designed compatiable with the RO part according to specific water condition from the buyer, the following devices can be an optional choices to be added into the pre-treatment part for optional choice for customized water treatment purpose:
1. Resin water softener with automatic backwash control
2. Pulsafeeder brand PAC chemical dosing machine for anti-scalant chemical dosing, for Chloride removal, for PH ratio adjustment
3. PLC control system
Our water treatment system has single pass type and two grade type with "HYDRANAUTICS" brand RO membrane in basic, "FILMTEC" desalination RO membrane for optional choice according to customer's water condition, pure water output capacity we have machines ranging from 300L/H to 20,000L/H in basic, larger system will be upon customer request.
Note:
1. All the valves, flange, elbow, water related parts are made by Stainless Steel 304
2. The pump we have Denmark Grundfos for customer choice, the customer also can make designation of pump brand
3. For the RO membrane we have U.S. Filmtec membrane for choose, the customer also can make designation of pump brand
4. All the change of configure the seller will confirm the price with buyer
