Liquid packing machines are PLC controlled, full automatic filling and sealing machines. These machines are suitable for different shampoo, ketchup, oil, lube, cream, beverages, etc. The machines are compatible for PP, PVC, LDPE, metallised polyester and aluminum foil based materials. Liquid packing machines can be further equipped with PID (Proportional integral Derivative) based temperature controllers. There are different models available depending on their roll widths. All contact parts are made of food grade stainless steel.
MODEL AS - 1000
Filing Range 100-500ML
Voltage AC220V/50HZ AC380
Paper-offering Motor 250W/220V
Power of Hot Sealing Vertical sealing 300W
500W
Horizontal sealing
Main Motor Power 370W/380V/220V
Overall Dimension 1000×800×2000MM
Weight 330KG
What’s the difference between photo-electric pouch filling machine / sachet filling machine / sachet packaging machine and none photo-electric one?

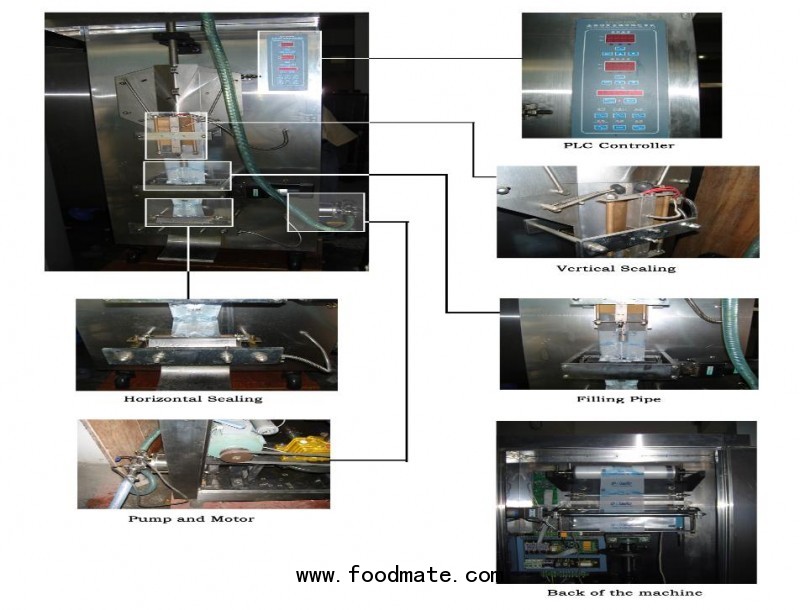

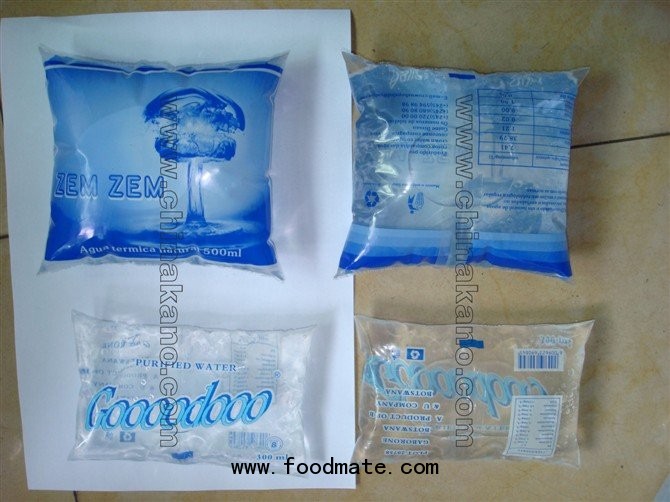

Photo-electric sensors are used to identify the marks on the sachet / pouch printing to make sure each product is in the same look, while the none photo-electric one can only cut and seal in the preset length. Please check the attached pictures.
Questions for clients
1.the type of input electrocity ,110V or 220v ?
2.what is the dimension for the packing bag ? so we can supply suitable packing film holder.
