KQ Automatic Biscuit making machine
*KQ Biscuit machine A
*Full automatic line
*stainless steel 304 machine
*various biscuits
*CE&ISO

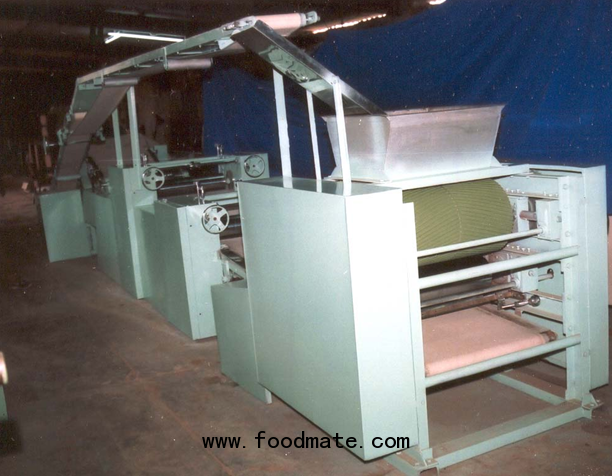

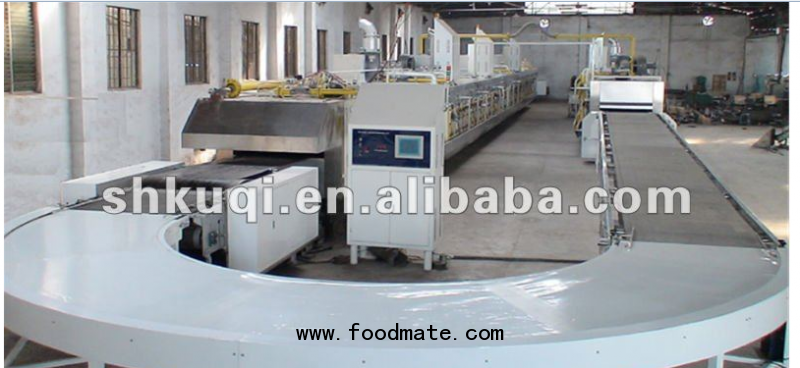

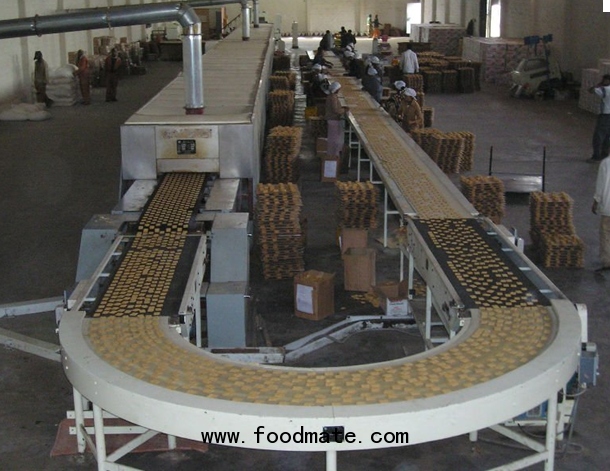

KQ Soft Biscuit/Hard Biscuit Production Line

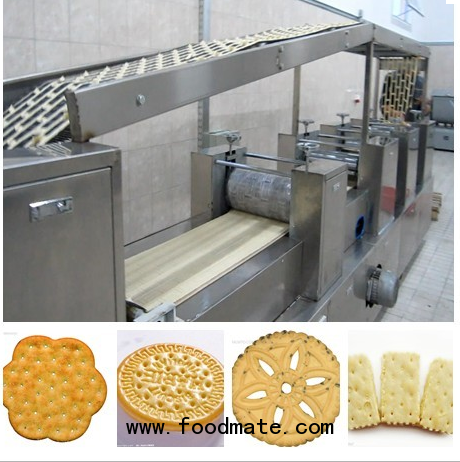

The multi-functional biscuit production line can produce several styles of biscuits, such as soft biscuit, hard biscuit, soda cracker, sandwiching biscuit, cream biscuit etc.,
this production line is automatic dc electromechanical integration of such process as material feeding,dough-forming for three times ,sugascreening,conveying,waste recycling,baking and spraying and cooling.
Note:
1. The production capacity is 30-1200kg/H
2. Main electronic equipments are adopted from Siemens
3. All machines are made by our company, welcome the vendee to check it at any moment during the making period.
4. Provide installation, debugging, training and recipes
5. Working Process: Doug Making->Biscuits Forming->Baking->Oil Spra-> Cooling->Stacking->Packing
PARAMETERS:
| Type | Length | Heating Zones | power | LPG Consumption | Natural Gas Consumption | Shift output |
| KQ/BC1200 | 65m | 5 | 26kw | 56kg/h | 68kg/h | 13t/8h |
| KQ/BC1000 | 55m | 4 | 26kw | 46kg/h | 56kg/h | 11t/8h |
| KQ/BC600 | 48m | 4 | 18kw | 36kg/h | 44kg/h | 4-5t/8h |
| KQ/BC480 | 36m | 3 | 15kw | 28kg/h | 35kg/h | 3-4/8h |
We are looking forward to establishing long-term business relationship with you.
For more useful information, please feel free to contact with me.
