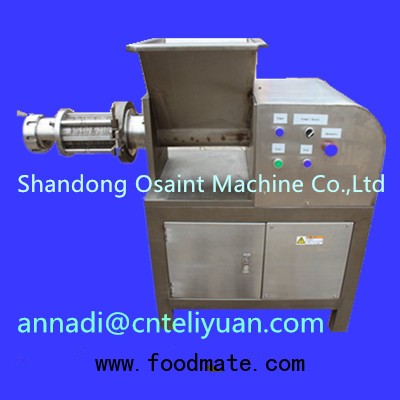

High quality new style debone chicken machinery
Application and Usage:
- It is mainly applicable for deboning chicken, hen, duck, goose, rabbit, pigeon, fish and other poultry.
- Mainly used for deboning meat, which separate bones from skeleton of poultry, chicken, duck, goose, rabbit, pigeon, fish and other poultry.
- Apply for meat processing factory, meat cold storage processing, slaughtering processing factory.
Characteristics:
- Use the SUS304 stainless steel in line with international food standard.
- Mechanical deboning meat from poultry skeleton, carcass or the whole frozen chick, duck, goose.
- Frequency conversion control, speed can be adjustable.
- Low rotation speed, small temperature rise and easy maintenance
- Easy taking apart and cleaning, low maintenance cost
- Calcium content in fished products lower than 0.03%, meat fiber not destroyed.
- 24 hours of continuous work.
- mechanically separated meat or poultry
specifications
Model |
TLY-500 |
Function |
Poultry Deboning |
Capacity (Kg/h) |
400~800 |
Output Speed (r/ min) |
110 |
Power (KW) |
3 KW |
Feed Structure |
Single Screw Rod |
Feed Screw Rod |
Φ80 |
Control System |
Button Control |
Drive Structure |
Direct connection between motor and reducer |
Reducer |
TKAF Reducer |
Speed Ratio of Reducer |
12.5 |
Machine Body |
Stainless Pipe Welding |
Bunker (mm) |
564*350 |
Output part (mm) |
Φ200*360 |
Output Type |
Stacked blade type |
No.s of Blades |
85 |
Packaging for shipment |
Wooden Case for shipment |
Overall Dimension L*W*H (mm) |
1200*350*1500 |
