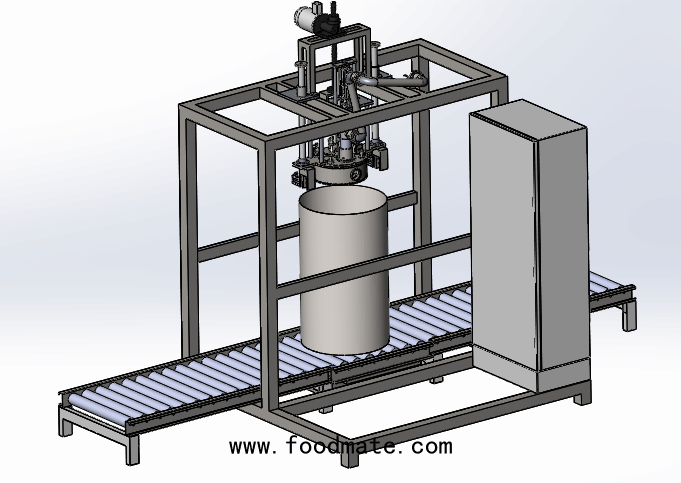

aseptic filling machine

aseptic filling machine
View Original Size
FOB Price: Negotiable
Product Type: single fruits processing machine
Port: Shanghai
Minimum Order Quantity: 1 set
Supply Ability: 50 set
Place Of Origin: Shanghai
Delivery Time: 15 days
Expiry Date: long-term effectiveness
Last Update: 2016-11-23
Views: 286
inquiry
about us








Product Details

1. Product Description

Shanghai JUMP Machinery & Technology Co., Ltd (hereinafter referred to as SHJUMP) is a modern high-tech joint-stock enterprise, and specializing in tomato sauce, fruit juice jam, tropical fruit processing, hot filling fruit juice drinks, tea drinks, dairy products processing and other whole plant equipment research and development, design, manufacture and turnkey projects. SHJUMP has more than 40 years rich experience and technical strength in food machinery industry, and has successfully set up more than 110 fruit juice jam production line at home and abroad. SHJUMP has a number of masters and doctors majoring in food engineering and packaging machinery, fully equipped with whole line project’s Design and development, manufacturing, installation and commissioning, technical training and after sales service, and other aspects of integrated capacities.

1. High production speed achieved by a newly designed head system (single head or twin heads available), improved reliability from a fully PLC controlled self diagnostic operational mode.

2. Greater versatility by meeting various packing standards with different products.

3 Coordinates well with the tube in tube sterilizer, if some malfunction with the filler, the product will be automatic flow back into the buffer tank before the UHT sterilizer.

4. The use of a hermetically sealed empty bag ensures the bag will remain sterile before it is filled.

5. High pressure saturated steam is used for sterilization of the fitment, cap and exposed portion of the filler prior to each filling cycle. NO CHEMICALS are required.

6. The sealing of the fill valve on the interior of the fitment keeps product completely away from the package sealing area.

7. The hermetic heat sealing of the fitment provides a tamper evident closure and a superior oxygen barrier.

8. The overall aseptic design of the filler allows uninterrupted. Operation throughout a complete tomato/fruit season, maximizing your plant's efficiency

9. CIP and SIP available together with tube in tube sterilizer


Steam consumption: 20 kg per hour

Compressed air consumption: 0.3 cubic metre per min (0.8 Mpa)

Measurement tolerance by electronic balance: ±0.5%

Measurement tolerance by flow meter: ±0.2%

Power: 1kw-6.5kw (with dynamic conveyer)

Dimension: 2300*2000*2500mm (l*w*h)

Aseptic bag size: 1-220 liters aseptic bag (normal)

                             1-1000 liters aseptic bag (optional



Our advantages

1.This project is the combination of domestic and foreign advanced technology to the production of fruits and design, and different seasons can produce different fruits.
2. All the equipment in the system are made of stainless steel (directly contact with the raw material ) are the most advanced processing technology as the foundation of modernization. The whole process design and the connection of pipeline are arranged after engineers fine compute, and considering the retention of the original natural aromatic constituents of fruits and vegetables, the cooling ,heating processing and the transmission are finished in a short time and distance, effectively preventing flavor and substances losing in the thermal reaction ; and also reduce the oxidation under high temperature conditions reflect to bring quality damage. The whole production line from fruit crushing material, all in a closed environment, through crushing, water cooking separation, concentration, sterilization, filling and aseptic environment,
maximize the retention of the original flavor and nutritional ingredients.
3.The operation of the control part use the automatic control system, automatic fault alarm system, a full range of security mechanism, security equipment and personnel safety; all electric control system parts were derived from the international well-known brands, such as Siemens, Omron and so on.
4.The types of steam control in production line (extremely important, related to the quality of products) all come from world famous steam control system brand Spirax sarco ,easy control, high reliability, effectively ensuring the quality of different batches of the product pure and the balance.
5.The main equipment are from Shanghai JUMP Machinery & Technology Co., Ltd.to ensure the equipment reliability, controllable ; the accuracy of the parameters; stability and safety.

2. Our Services

Pre sales service
We can suggest customer the most suitable machine according to their formula and Raw material. “Design and development”, “manufacturing”, “installation and commissioning”, “technical training” and “after sales service”. We can introduce you supplier of raw material, bottles, labels etc. Welcome you to our production workshop to learn how our engineer produce. We could customize machines according to your real need, and we could send our engineer to your factory to install machines and train your worker of Operation and maintenance. Any more requests. Just let us know.

After-sale service
1.Installation and commissioning: We will send experienced engineering and technical personnel to be responsible for the installation and commissioning of the equipment until the equipment is qualified to ensure that the equipment is in time and put into production;
2.Regular visits:To ensure the long-term stable operation of the equipment, we will be based on customer needs, provide one to three times a year to come to technical support and other integrated services;
3.Detailed inspection report: Whether the inspection regular service, or the annual maintenance, our engineers will provide a detailed inspection report for the customer and the company reference archive, in order to learn the equipment operation at any time;
4.Fully complete parts inventory: In order to reduce the cost of parts in your inventory, provide better and faster service, we prepared a complete inventory of parts of equipment, to meet customers possible period of want or need;
5.Professional and technical training:In order to ensure the performance of the customer's technical personnel to become familiar with the equipment, correctly grasp the equipment operation and maintenance procedures, in addition to install on-site technical training. Besides, you also can hold all kinds of professionals to the factory workshops, to help you faster and more comprehensive grasp of technology;
6.Software and consulting services:In order to allow your technical staff to have a greater understanding of the equipment related counseling, I will arrange to send the equipment regularly sent to the advisory and latest information magazine.

3. Company Information

Shanghai JUMP Machinery & Technology Co., Ltd (hereinafter referred to as SHJUMP) (subsidiary company: Shanghai JUMP Automation Equipment Co., Ltd.) is a modern high-tech joint-stock enterprise, formerly known as Shanghai Light Industry Group, specializing in tomato sauce, fruit juice jam, tropical fruit processing, Hot filling fruit juice drinks, tea drinks, and other whole plant equipment research and development, design, manufacture and turnkey projects. The company's employees are highly professional as the core engineers and R & D personnel come directly from the former Shanghai Light Industry Group. At the same time, the company has a number of masters and doctors majoring in food engineering and packaging machinery, fully equipped with whole line project’s Design and development, manufacturing, installation and commissioning, technical training and after sales service, and other aspects of integrated capacities.

Owning to the Shanghai Light Industry Group 40 years rich experience and technical strength in food machinery industry, adhering to the concept of "absorbing foreign technique extensively , innovating independently domestically " , SHJUMP maintains a strong leading position not only in traditional equipment for tomato sauce, apple juice concentrate , but also makes brilliant achievements in other fruit and vegetable beverage equipment , such as for Red dates, Wolf berry, Sea-buckthorn, Cili, Loquat, Raspberry and other concentrated juice production and diluting& filling production line. SHJUMP mastered professional processing technology and advanced enzymatic technology, and has successfully set up more than 110 fruit juice jam production line at home and abroad, and has helped customers gain excellent product quality and good economic benefits. SHJUMP integrates the latest foreign technology, fully upgrades its own technology, committed to providing customers with the most professional, most reasonable, most economical, most rational customized solutions. SHJUMP keeps long-term cooperative relations not only with the Chinese Academy of Agricultural Sciences National Fruit Institute, Central China Agricultural University, Jiangnan University and other research institutes at home, but also establishes a stable technical cooperation and business partnerships with the Italian FBR, Ing.Rossi, Bertuzzi, CFT etc.. Concerning the tomato sauce and other fruit juice jam processing projects, based on comprehensive technical cooperation with the Italian partners, SHJUMP has own incomparable technical advantages in the fruit pre-treatment, hot and cold crushing process, energy-efficient concentration, casing sterilization and aseptic bag filling. large vacuum evaporation concentrating equipment "1000L-60000L/H", large sterilization equipment “tubular and tube in tube type 1T/H-50T/H" and other concentrated equipment for juice and jam  has gain high reputation in the industry for their high performance and ultra low temperature ; And large tube-in-tube sterilization equipment have gain major breakthrough in energy saving, with 30% energy saved compared with the industry standard, which has owned the national patent (Patent No.: ZL 201120565107.2); SHJUMP can supply whole processing line with daily treatment capacity 20-1500T fresh fruits per customer’s requirement.

SHJUMP, adhering to principle of branding on quality and service, after years of effort, has established a good brand image due to superior prices and quality service. Its products are widely penetrated into the Southeast Asia, the Middle East, Africa, South America, Europe and other overseas markets.

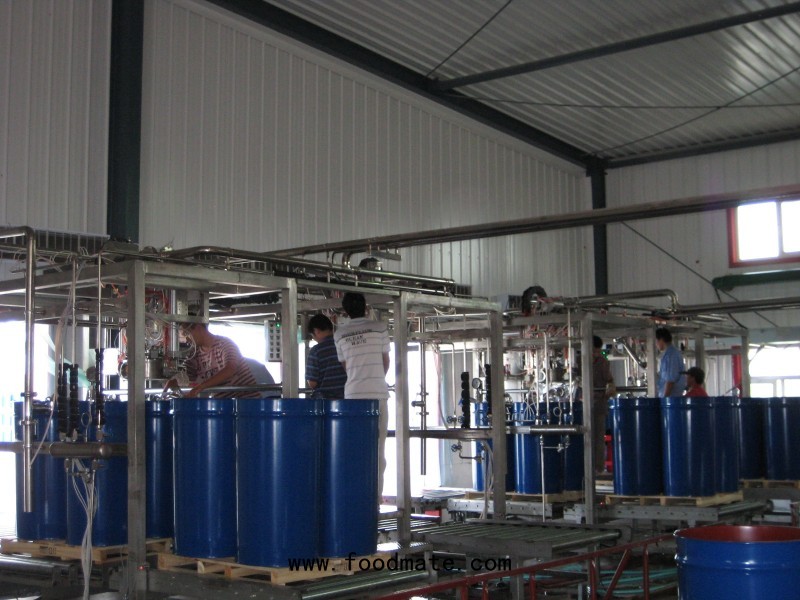

Factory Site & Sales Office



With Clients
