STAINLESS STEEL KNITTED WIRE MESH DEMISTERS - PAD FILTERS WITH STEEL BAR SUPPORT GRID FOR OIL AND GAS INDUSTRIES

Knitted wire mesh type demisters are designed specially in drilling of oil and water well, petrochemical and process industries. The steel bar and rod grid design offers this mesh filter demisters a fixed structure requiring less if any maintenance.

Stainless Steel Wire Mesh Knitted Demisters feature simple structure, big porosity and small pressure drop, large contact surface area, high defoaming efficiency, light weight, easy installation, operation and maintenance.

Knitted mesh type demisters work mainly as screen defoaming filters used for vertical separators, in-line gas scrubbers and collection towers.

We supply wire mesh knitted demister pads in ss304 and ss316l materials, with tie wire and bars support grid. The mist catchers or demisters can be supplied in round pad or square pad shap. The bar grid makes it fixed to remove enstrained liquid droplets passing through the knitted mesh materials.

With demisters we also supply with sketch or drawing as how to fit in the vessel, Area Calculated and recommended area and complete accessories for assembling. Major markets we supply include USA, Spain, U.A.E., Thailand, Poland, India, Pakistand and other countries.

Technical Details including Types, Wire, Mesh Surface Area, Vessels, Grid Material, Filtration and Applications are introduced with each types of demisters we supply for export below.

Wire mesh demisters in square and round pads

Demister of Crimped Flat Wire Knit Mesh, 0.23 mm minimum Wire Thickness, designed with grid: Used for Separator Skid to remove 99.5% mist & dust of >5µm size, to be passed through manhole of 600 mm nominal diameter.

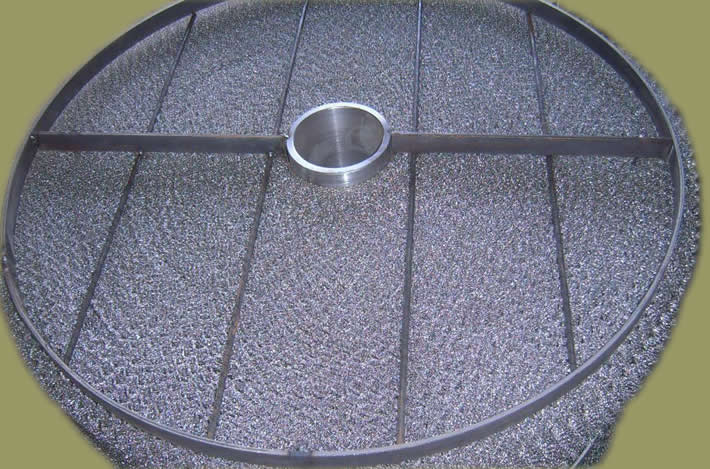

AISI 304 SS Knitted Wire Mesh Demister

Material: AISI 304 Stainless steel Knitted Mesh
Diameter : 2992 mm
Thickness: 200 mm
Density: 280 Kg. / m3
Style: framed and support with grid

Circular SS316 Knitted Wire Mesh Pad Demister with Standard Support Grids D1850*H200-T150(mm)

Knitted Wire Mesh Pad Demister with Standard Support Grids
Material : Fully SS316
Density of Wire Mesh Pad : 140 kg/m3
Wire diameter : 0.23 mm
Pad shape: Circular
Structure : Segmented to 6 pieces
Dimension : D.1850 * H.200 - T.150 (mm)
Application: SEPARATOR

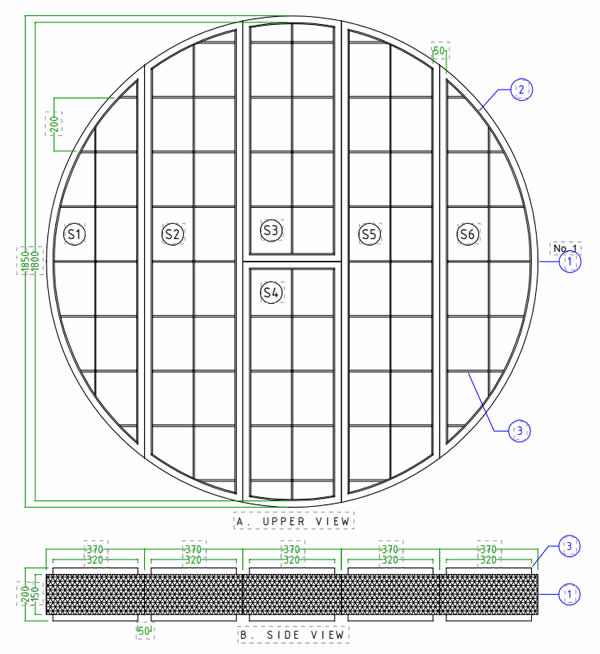

Knitted Wire Mesh Pad Demister Design Drawing:

Parts Description in the drawing:

No.1, Knitted Wire Mesh Pad (0.23mm Standard Wire Diameter)

No. 2, Grids Base (Round Bar Ø6 mm)

No. 3, Support Grids (Flat Bar 5*25 mm)
Unit: mm (milimeter)

Note :
1. This drawing is for proposal, approval, and reference only, may not be 100% actually detailed and precise.
2. Demisters as per this design drawing or custom designs can be supplied.
3. Support Grids have to be fabricated refer to this drawing, in the perfectly best design, quality, condition, & appearance.
4. The welding points/traces of Support Grids are perfectly neat, clean, fine, and good.
5. Certificates of Raw Materials / Material Mill Certificates are supplied.
