Ro System Water Treatment
A. De
reverse osmosis, the raw water is tap water, first goes by pre-treatment, then by RO treatment. Through those treatments, can remove dissolving salt 99% and harmful materials, like particle, colloid, organic impurities, heavy metal ions,
bacteria, viruses and heat source, etc. the system salt rejection rate gets 96-98%, outlet water conductivity gets ≤10μs/cm².
B. Process:ro system water treatment

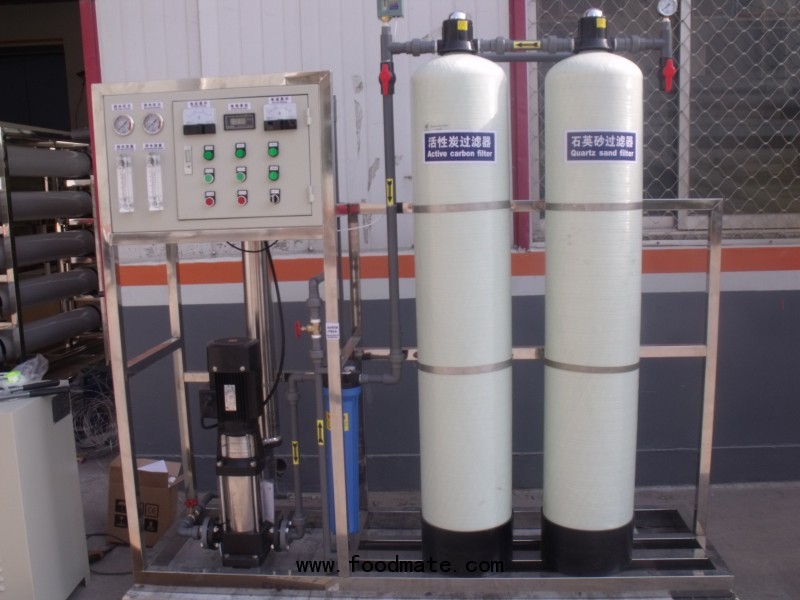

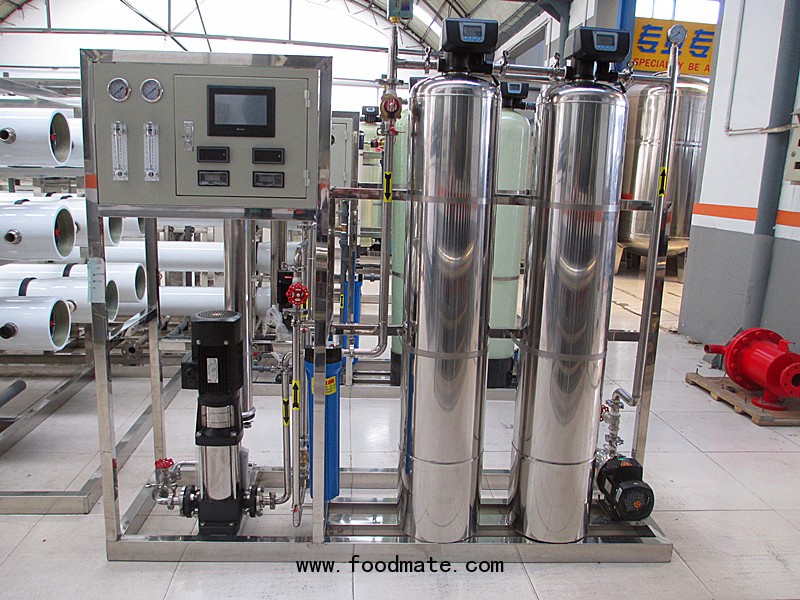

Raw water+ raw water tank +Raw water pump+Quartz sand Filter + Carbon Filter + softener filter(Optional) +security filter+High Pressure Pump+ Reverse Osmosis system +pure water tank+UV sterilizer(ozone generator) +precision filter+ water supply point
C. Parameters:ro system water treatment
|
Model |
CY-RO |
|
Capacity of the purified water |
250L per hour ( 25°C) |
|
Voltage / Frequency |
AC220V 18A / 380V 9A 50HZ |
|
Multistage Pump |
CNP CDL2-130 1.5kw Autostop if Low pressure / power / water shortage |
|
Reverse Osmosis Main Part |
S.S304 Housing with 1 pcs RO membrane RO Membrane Origin USA Hydranautic or DOW |
|
Main Control Board |
Equiped TDS / Pressure meter / Flow meter / Control buttom |
|
RO System Washing |
1.Back washing 2.Chemical washing for RO membrane |
|
Dimension of the RO machine |
2600*800*1820 (including the pretreatment system |
|
Post UV sterilizer UV-40W |
Optional |
|
Post Ozone System |
Optional |
D. Function:ro system water treatment
1. Manually and automatically wash RO membrane,
2. Manually wash RO memebrane with chemicals on machine,
3. Machine automatically stops when high water level of purified water, and runs when low level,
4. Multi-stage pumps protect the machine when lack of water,
5. Protection in such cases as no power, lower pressure, higher pressure, shot circuit, creepage, etc.
E. Service:
1. Installation adjustment and maintain guideline for free
2. We can manufacture machines according to your requirement, welcome OEM.
If you are interested in any of our products or would like to discuss your OEM orders, please feel free to visit our website for
more details or contact us directly with your inquiries
Please tell me you needed production capacility per hour of bottled water, according to this I can give you quotation and configuration table. Also supply the water treatment equipment ,sterilization system, bottle blowing machine .packing machine etc with use of the filling machine.We will appreciate it very much if you offer us the following :
1) your raw water analysis report
2) the specific requirement you need per day or per hour , the relative standard you want the water treated to .
