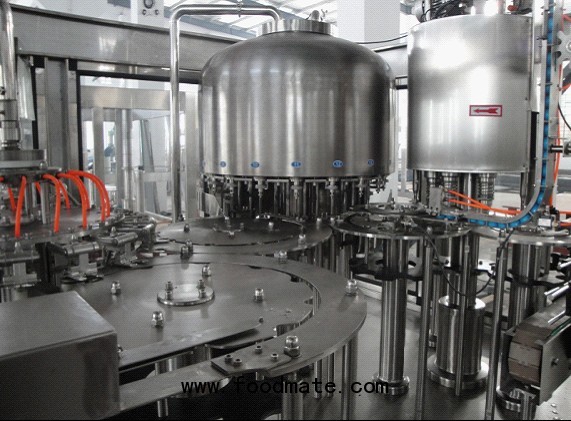

Small Bottle Filling machine (can fill 0.5L and 1.5L with one machine, but have to change some fittings)
These series model Tribloc Rinser Filler Capper work harmoniously with air-conveyor belt.
It especially design to fill water into pet bottle, the process chart is below:
Rinse the empty bottle with clean water ---filling the mineral water into the bottle ----capping the fillied bottles with screw caps
It integrates 3 functions in one machine.
Technical Parameter
|
Model |
18-18-6 |
|
Filling Capacity |
4000~6000 on 500ML PET Bottle， so for your 1.5L bottle is |
|
Rinsing/Filling/Capping Head Quantity |
18/18/6 |
|
Suitable PET bottle size |
Diameter Φ50～Φ95mm Highness:160～320mm, Bottle neck: 28mm, for bottle 200-2250ml |
|
Suitable to fill |
Water, wine & other non-carbonated drink |
|
Washing Water Required |
1000 liter to 1200 liter per hour |
|
Washing Pressure Required |
0.4MPA |
|
Working Power |
220/380V AC 50/60HZ 3-phase, (other power supply is available) |
|
Control Panel Power |
24V DC |
|
Filling Pressure |
0.15-0.35MPa |
|
Compressed Air Pressure (for caps arranger) |
0.7MPa |
|
Compressed Air Consumption (for caps arranger) |
0.7 m3/min |
|
Machine Size |
2260x1820x2250mm |
|
Gross Weight |
3000kg approximately |
|
Total Power |
3.68 KW |
Features:
This machine works harmoniously with air-conveyor belt; it holds the bottles by the neck, thus, reducing the possibility of bottles falling over during conveying process.
This machine is used to fill water into pet bottle and with screw caps capping function.
This machine integrated three function: 1. Rinse the empty pet bottle, 2. filling the rinsed bottles with production water, 3. capping the filled bottles
Rinser Station:
l All 304 stainless steel rinser heads, water spray style inject design, more save water consumption & more clean
l 304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
l 304 stainless steel washing pumps
Filling Station:
l High precision filling nozzle, PLC variable signal control, ensure high filling precision & filling smoothly & steadily
l Gravity filling, high precision filling nozzle, same liquid level after filling, filling volume adjustable
l All 304 stainless steel contact parts & liquid tank, fine polish, easy to clean
l No bottle no filling
Capper station:
l Place & capping system, electromagnetic capping heads, steadily & smoothly
l All 304stainless steel construction
l No bottle no capping,
l Automatic stop when lack of bottle
Electric Part & Safe Device & Automation:
l Sensor control, when force to open the windows, system will automatic stop
l When accident system automatic stop & alarm
l Emergency switch when accident
l Famous Mitsubishi brand PLC , Touch-screen Control Panel & inverter
l Famous Schneider and Delixi brand sensor & other electric parts adopted, ensure the whole system heavy duty running
l All Nanfang brand Food Grade 304 stainless steel rinsing pump & filling pump, reliable & sanitary
Machine Base & Machine Construction:
l 304 stainless steel construction, fine which gives excellent appearance and can be easily disinfected.
l 304 stainless steel bearing base, combine with famous Japan NSK brand bearing, heavy duty running
l Tempering Glass window with stainless steel
l The suspending design allows the maintenance to be performed easily due to fewer moving parts.
l Excellent start wheel design to making it easily when needs to change machine height when bottles sizes are changed.
l Machine Base with process of polish & clean--- three layers Antirust Paint ensure the forever antirust
l All seal where liquid may Leakage & base neck come with rubber, water proof
l Manual lubrication oil hole
