Technical Parameter of RFC-W 24-24-8
|
Output Capacity |
8000~12000BPH on 500ml PET Bottle |
|
Rinsing /Filling / Capping heads Quantity |
24pcs / 24pcs / 8pcs |
|
Suitable PET bottle size |
Bottle Diameter Φ50～Φ95mm Bottle Highness:160～310mm, Bottle neck: 28mm, for Bottle Volume 200-2250ml |
|
Suitable to fill |
Water & Non-carbonated drink |
|
Washing Water Required |
1000~1200 liter per hour |
|
Washing Pressure Required |
0.4Mpa |
|
Working Power |
380V AC60HZ 3-phase, (other power supply is available) |
|
Control Panel Power |
24V DC |
|
Compressed Air Pressure (for caps arranger) |
0.7MPa |
|
Compressed Air Consumption (for caps arranger) |
0.4m3/min |
|
Conveyor for output |
3Meters with famous motor driven |
|
Cap auto aupplier |
Wind blowing, with sensor no caps auto start working |
|
Machine Dimension |
2460x1880x2350mm |
|
Gross Weight |
3200kg approximately |
Features
This machine works harmoniously with air-conveyor belt, It holds the bottles by the neck, thus, reducing the possibility of bottles falling over during conveying process.
This machine is used to fill still water into pet bottle and with screw caps capping function.
This machine integrated three function: 1. Rinse the empty pet bottle, 2. filling the rinsed bottles, 3. capping the filled bottles
Rinser Station:
l All 304 stainless steel rinser heads, water spray style inject design, more save water consumption & more clean
l 304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
l 304 stainless steel washing pumps
Filler Station:
l High precision filling nozzle, PLC variable signal control, ensure high filling precision
l Gravity filling, & filling smoothly & steadily
l All 304 stainless steel contact parts & liquid tank, fine polish, easy to clean
l No bottle no filling
Capper station:
l Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
l All 304stainless steel construction
l No bottle no capping and Automatic stop when lack of bottle
Electric Part & Safe Device & Automation:
l Emergency switch when accident
l Famous Siemens brand PLC , Touch-screen Control Panel & inverter
l Famous Omron brand sensor & other electric parts adopted, ensure the whole system heavy duty running
l All Nanfang brand Food Grade 304 stainless steel rinsing pump, reliable & sanitary
Machine Base & Machine Construction:
l 304 stainless steel construction, fine which gives excellent appearance and can be easily disinfected.
l Tempering Glass window, Clear & no odor
l Excellent start wheel design to making it easily when needs to change machine height when bottles sizes are changed.
l Machine Base with anti-rust process, ensure the forever antirust
l All seal where liquid may Leakage & base neck come with rubber, water proof
Manual lubrication system

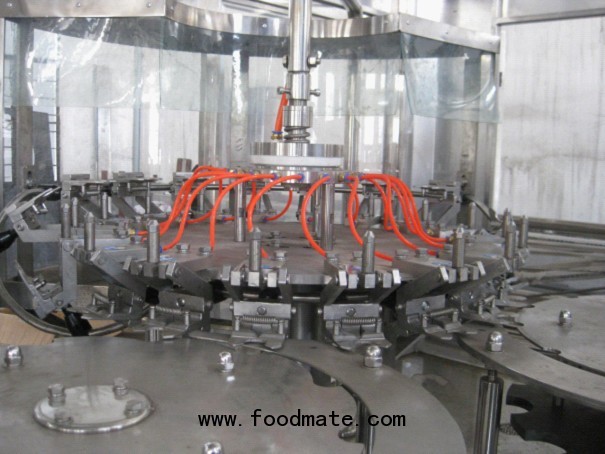

The rinser, all stainless

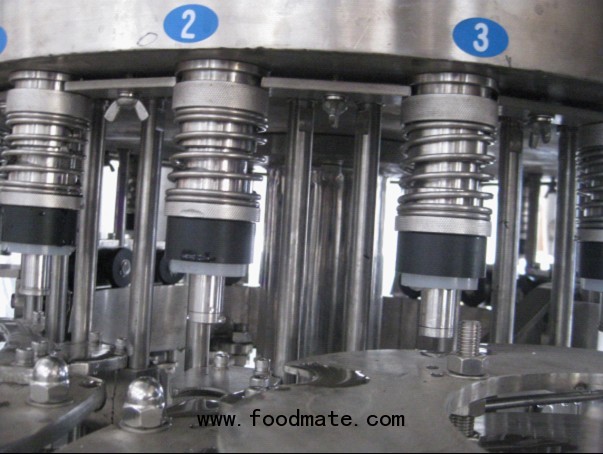

the filling valve
