soybean milk making machine

TG-150 Soybean Grinding/Cooking Machine


Main technical data:
Input: 40-65kg/hr,
Voltage: 380V/50Hz,220v/50hz
Milk Grinding power: 2KW
Boiling pan capacity: 170L*2
Size: 1000*1200*1850mm
weight:300kg
(Need to bring their own steam boiler, steam evaporation:50kg/hr more

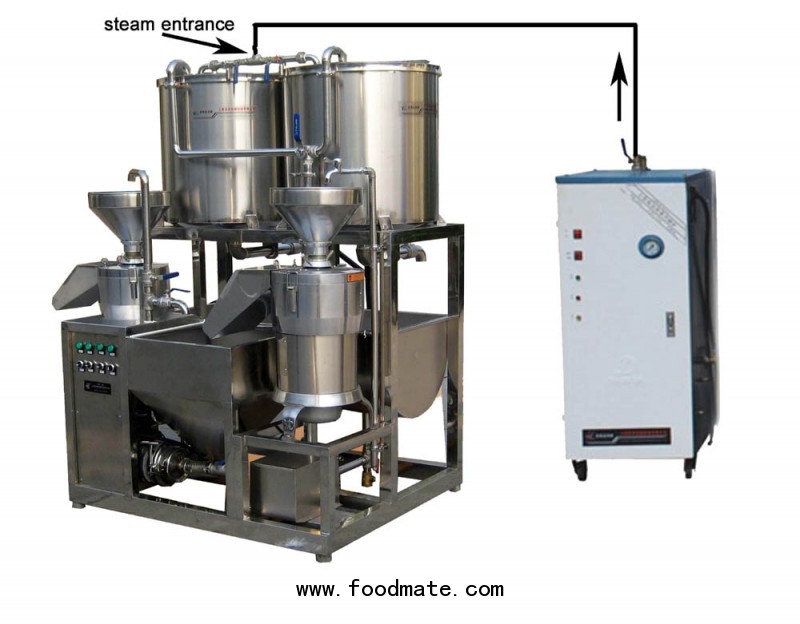

Structure:
The machine of entire stainless steel structure, twice grinding paste systems, two barrel cooking soymilk, composed of two grinding & separating machines, suction pumps, bean-dreg pumps, soybean milk barrel, bean-dreg barrel, cooking soybean barrel and so on. External connect steam.

Features:
The types of electric heating boilers, gas heating, diesel heating, coal or wood heating, etc. select the appropriate model to use their own）
Do tofu, the need to increase Bean product pressing machine.

Application:
Small scale bean processing factory, supermarket and so on.
