Extruding and inflating technology is that it can supply us un-image processing measure, combine with market demand, pet food machinery produced by Chenyang Company, adopts particular process technics and equipment scheme. The final products with fashion shape, specail taste, scientific nutrition combinative, easily to absorb and is quite popular to the pet market.
Materials: adopts corn flour, bone meal, fish meal as raw materials
Capacity: 120-150kg/h 160-200kg/h 300-500kg/h

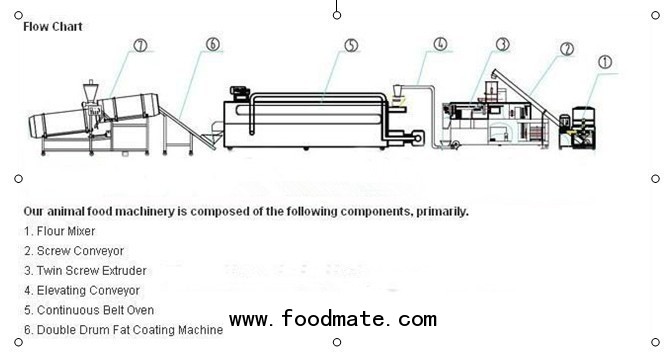

Process and follow chart
Mixer---Screw conveyor---Double screw extruder--- Air conveyor--- Drying oven------Hoister---Flavouring---Cooling
Voltage: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries
Technical Parameter:
|
Model |
CY65-II Pet food processing Line |
CY70 Pet Food Processing Line |
CY85 Pet Food Processing Line |
|
Installed Capacity |
70 kw |
120 kw |
145 kw |
|
Power |
22kw |
30 kw |
90 kw |
|
Capacity |
120-150kg/h |
160-200 kg/h |
300-500kg/h |
|
Dimension |
1200012002300mm |
3300015002400mm |
3500015002500m |
The Various Parts Of Details Technical Parameter:
|
Model |
Installed powder |
Power consumption |
Output |
Dimension |
|
Mixer |
4kw |
3kw |
40kg/time |
1200*650*1100mm |
|
Screw conveyor |
1.1kw |
0.8kw |
100-200 kg/h |
3000*800*2800mm |
|
Double screw extruder |
45kw |
30kw |
120-150 kg/h |
2500*1050*1800mm |
|
Air Conveyor |
0.75kw |
0.5kw |
120-150 kg/h |
1000*200*1800 mm |
|
Drying oven |
65kw(elec.) |
40kw |
120-200 Kg/h |
5000*1400*2000 mm |
|
7.5kw(gas/oil) |
12L/h |
|||
|
Flavouring |
4.5kw |
3kw |
120-150 kg/h |
3500*600*1600mm |
Installation and after-sale service system:
1. Installation and commissioning
2. Project planning and design services
3. Training of equipment maintenance and operating personally
4. New production techniques and formulas
5. 1 year complete warrantee
The samples:
