Main features
Core filling snack food machine take corn flour, rice flour, corn grits, millet, etc as raw materials for production. Using advanced extruding technology,through changing moulds and production technics to produce many kinds of popular snack food in the market.It has a agility scheme,strong adaptability."Low cost, high profits" is the suitable generalization of Snack food production line, especially for puff snack food.
Voltage:Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries

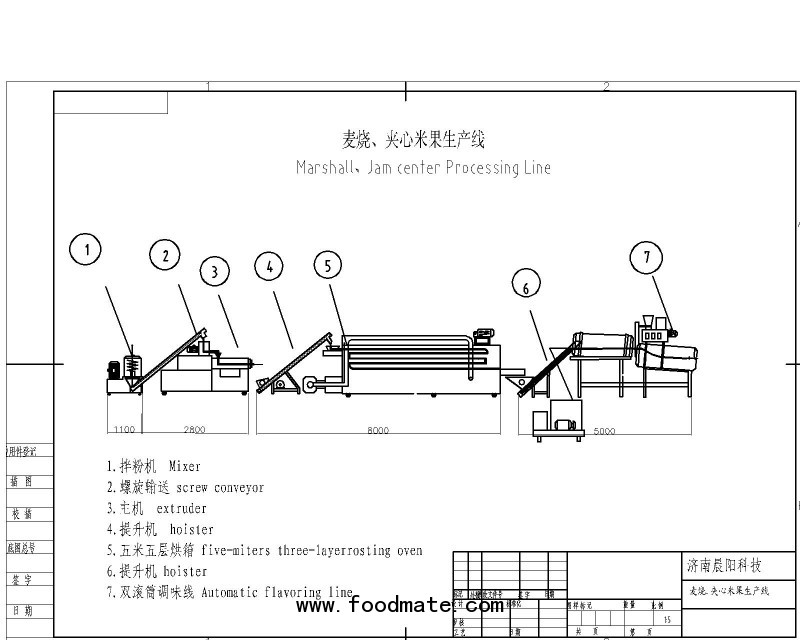

Core filling snack food Productions Flow-chart
Process Flow
Mixer→ Screw conveyor → Twin screw extruder→ Core filling machine→ Shaping and cutting machine→ Air conveyor(Hoister)→ Electric dryer → Hoister → Oil Sprayer→ Flavoring roller(drum) → Cooling conveyor
The pictures:
Technical parameter
|
Name |
Processing line |
Output |
Power |
Size |
|
Snack food |
1. mixer2.screw conveyor 3.Twin screw-extruder4.Air-conveyor 5.Roasting oven6.flavoring line |
100-120kg/h |
53kw |
15*0.8*1.6m |
|
Core filling food |
1.mixer2.screw-conveyor3.double-screw-extruder4.Multi-function shaper5.core-filler6.large-hoister7.Roasting oven8.Flavoring line |
100-120kg/h |
55kw |
18*0.8*1.6m |
The detailed information for core filling snack food processing line
|
No. |
Machine |
Motor power |
Capacity |
Dimension |
Quantity |
Function |
|
1 |
Flour mixer |
4kw |
50kg/3-5mins |
0.8*0.7*1.2m |
1 set |
To mix the raw materials such as corn flour with some additives. |
|
2. |
Screw conveyor |
1.1kw |
3.0*0.8*2m |
1 set |
To send the materials to the extruder |
|
|
3 |
CY65-II Double screw extruder |
35kw |
120-150kg/h |
2.5*1*1.8m |
1 set |
To extrude and inflate the food. |
|
4 |
Core filler |
3.5kw |
150kg/h |
0.8*0.6*1.8m |
1 set |
Filling core for the snack food inside,and have filling many taste |
|
5 |
Multi-function cutting shaper |
2 kw |
120-150kg/h |
1.1*0.8*1.3m |
1 set |
Can cut the different shapes |
|
6 |
Large-hoister |
1.1kw |
150-300kg/h |
2*0.6*2.3m |
1 set |
Transfer the snack food to roasting oven |
|
7. |
Roasting oven/dryer |
27.5kw |
100-150kg/h |
5*1.3*2m |
1 set |
To dry the food |
|
8 |
Automatic Double flavoring line |
6.5kw |
300-450kg/h 1 |
4*0.7*2m |
1 set |
Have different delicious taste |
1. We can provide factory layout according to customer’s factory size in advance.
2. When we received your deposit of this order, we will ask our engineers to prepare to apply the visa, when the processing line arrived your country, and we will send two engineers to go and help you to install the line, teach your worker(3-4 workers) how to operate the line, until your worker know the line well.
3. Our engineers has responsibility to teach your worker how to clean the extruder, how to change the screw, how to change barrel etc. and we have responsibility to provide technology support with you forever.
4. Our engineers can provide basic formula for producing the core filling food and help customer to produce good quality food according customer’s detailed formula.
5. We provide the spare parts will at preferential price for an extended long time.
