I. Description
Pet food machinery uses meat meal, fish meal, corn powder, soya meal and other grains powder as main materials to make the pet food, such as dog, cat, fish, bird food etc. With different shapes and tastes by changing the dies and formulations. The pet foods are made under high temperature condition, and popular to the pet food market.
1.Raw Materials: Meat Meal, Fish Meal, Corn Powder, Soya Meal and Other Grain Powder
2.Products: Pet Food, Like Dog, Cat, Fish, Bird Food etc. with Different Shapes and Tastes by Changing the Dies and Formulations.
3.Capacity: 120-150 KG/H, 200-250 KG/H, 400-500 KG/H, 800-1000 KG/H.
4.Voltage: Three phases: 380V/50HZ, Single phase: 220V/50HZ, we can make it according to customers' local voltage according to different countries.
5.Machines Materials: All the machines are made by food grade stainless steel

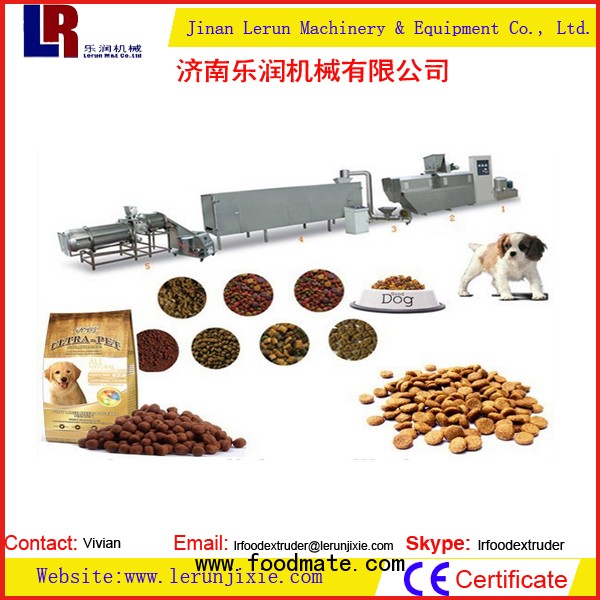

II. Flow Chart
III.Technical Parameters
|
Model |
Installed Power |
Power Consumption |
Output |
Size(L×W× H) |
|
LRS65 |
93kw |
65kw |
120-150kg/h |
2250012002200mm |
|
LRS65-VI |
100kw |
70kw |
200-250kg/h |
2500015002200mm |
|
LRS85 |
148kw |
104kw |
400-500kg/h |
3000035004300mm |
IV. Sample Picture
 |
 |
 |
 |
 |
V. Details and Physical
1. Alloy (38CrMoAL) screw made by nitriding process, high strength and wear-resting. Self-cleaning ability, no need to discharge or clean the barrel and screw when roasting or replacing of materials.
2. Adopting speed-adjusted converter on feeding system, extrusion system and cutting system. Food grade stainless steel twin screw feeding machine, stable materials feeding in the whole food process.
3. Gearbox with automatic lubrication function, extending gear life.
4. World famous brand Siemens main motor, guaranteeing good quality
5. Barrel with water-cooled circulation, raw materials not only for corn/rice, also for wheat flour/starch with high viscosity. Different moisture-extrusion temperature ratio, whole-expanded and half expanded as different type of products.
6. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.
VI. Packaging
VII. Service & Turnkey Solution
1.) Consultation service before, during,and after sales;
2.) Project planning and design service;
3.) Debugging of equipment until everything is functional;
4.) Management of equipments' long distance shipping from seller's factory to the named place by buyer;
5.) Training of equipment maintenance and operating personally;
6.) New production techniques and formulas;
7.) Provide 1 year complete warranty and life-time maintenance service.
